Série 14040 / 14140 / R18840

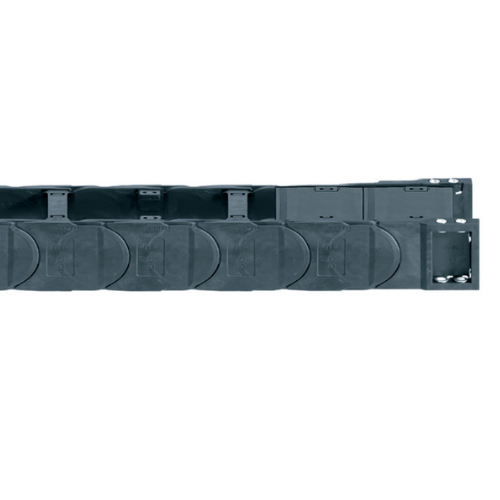

Energetické řetězy e-chain®
série 14040/14140/R18840

  1. Příčky tohoto energetického řetězu lze na obou stranách demontovat
  2. Rozevírací vyměnitelná víka u vnějšího poloměru
  3. Lze kombinovat uzavřené a otevřené varianty
  4. Příčné kluzné plochy pro boční provoz
  5. Široké plastové příčky - vhodné pro kabely
  6. Řada možností vnitřního oddělení
  7. K dispozici jsou otočné a pojistné koncovky
  8. Koncovky KMA s montážními body na všech stranách
  9. Možnost integrace odlehčení
  10. Nová, pevnější verze v provedení na "pero a drážku"
  11. K dispozici rovněž se zpětným poloměrem ohybu "RBR"
Certifikáty a normy: RoHS 2 2011_65_EU REACH
14040 / 14140
R18840
série 14040_14140 Serie_R18840
Vnitřní šířky Bi: 50 až 600 mm
Poloměry ohybu R: 135 až 500 mm
Rozteč: 91 mm na článek = 11 článků / m
Vnitřní šířky Bi: 75 až 462 mm
Poloměry ohybu R: 150 až 500 mm
Rozteč: 91 mm na článek = 11 článků / m
Samonosné pojezdy
Závislost samonosné pojezdy na dodatečném zatížení.
Osa X: Samonosné pojezdy v m: FLB/FLG
Osa Y: Dodatečné zatížení v kg/m
Menší měřítko: délka pojezdu S v m
FLB = Bez podpory s přípustným průhybem
FLG = Bez podpory s přímým horním chodem

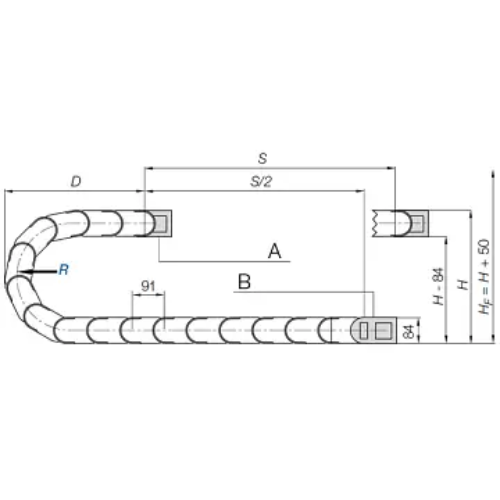

Serie_14040_14140_R18840 výkres A1 = Pohyblivý konec
A2 = Pevný konec
Rozteč: 91 mm
Články na m: 11
Pojezd: S
Délka řetězu = S/2 + K
R 135*
150 175
200
250
300
400
500
H 360
385
435
485
585
685
885
1085
D 270
285
310
335
385
435
535
635
K 650
750
825
900
1050
1225
1450
1775
Kdy použít:  Kdy zvolit jiný:
  • Pokud může být snížení hmotnosti a ceny doprovázeno kompromisem ve stabilitě
  • Je vyžadován řetěz e-chain®/e-tube s vnitřní výškou 56 mm
  • Pokud je požadována vnitřní šířka až 600 mm
  • Pro samonosné délky až do 4,0 m a plnicí hmotnosti až do 40 kg/m
  • Pro pojezdy do 150 m
  • Vhodné také pro boční, stojící a závěsné aplikace
  • Je-li požadována tichá verze
    » série E6.52
  • vyžaduje-li boční aplikace velké samonosné pojezdy
    » série E4.56
  • Požadujete delší samonosné pojezdy a delší pojezdové vzdálenosti
    » série E4.56
Koncovky

Koncovka, KMA "otočná"

Koncovka, KMA "pojistná"
Koncovka KMA otočná série 14040_14140_R18840 výkres
koncovka KMA pojistná série 14040_14140_R18840 výkres
  • Pro horizontální aplikace
  • Kývání vzhledem k prvnímu článku
  • Volitelný C-profil
  • Korozivzdorné
  • Univerzální montáž
