K 754
DESCRIPTION
The seal K 754 is an compact seal type for one-acting and double-acting cylinders with very low friction and it has small space demands. K 754 is recommended for easy or medium applications. This seal consists of O-Ring (preloading part) and TPE profile ring which is excellent wear resistant. The K 754 is mainly used with the guiding strips of reinforced fabric type F 506 or with guiding strips F 87 of PTFE / bronze.
- easy assembly without tools
- optimal tightness
- good position holding under the load
- excellent gap resistance
- excellent wear resistance at a very fine and very rough sliding surfaces
- low friction
- low sensitivity to dirt
- small housing demand
- piston construction is cost effective

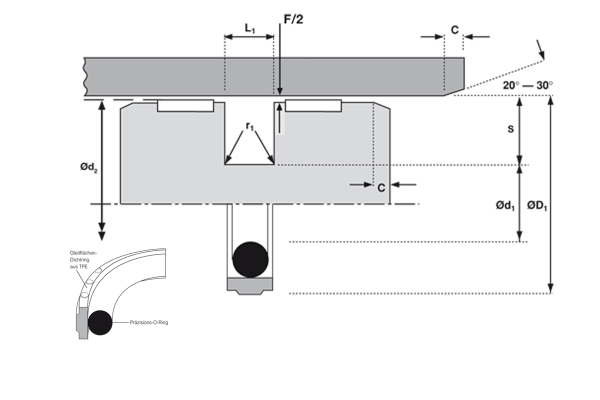

Standard series are designed for housing in accordance with ISO 7425.
K 754 is also suitable for oscillatory and rotating movements as well as for spiral movement. Please ask us for more detailes in these cases.
MEDIA
This seal standardly use NBR O-Ring and is suitable to run in liquids based on mineral oil from -40°C to +100°C. The temperature range from -20°C to +60°C is allowed for water, pressure liquids HFA and HFB in case of standard materials.
| Operating conditions | ||
|---|---|---|
| Maximum pressure | ||
| ´v´max. | Temperature range | Temperature range |
| m/s | -40°C / +80°C | -40°C / +100°C |
| 1 | 250 bar | 200 bar |
| 0,5 | 350 bar | 250 bar |
