Série E61.35

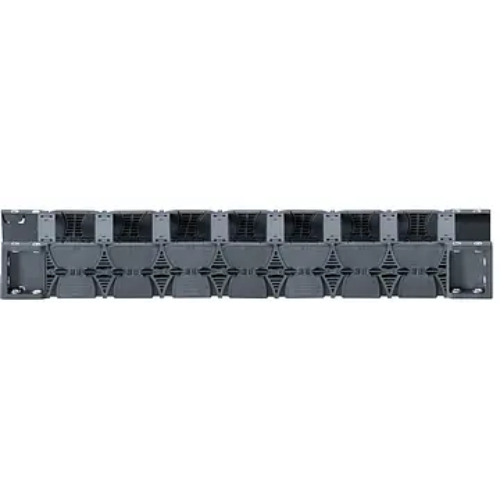

Energetický řetěz e-chain® série E61.35
- Vysoká dynamika
- Extrémně nízké vibrace
- Upevnění z libovolné strany pomocí montážních držáků KMA
- Prakticky žádný mnohoúhelníkový efekt, hladký chod
Certifikáty a normy:
Vnitřní šířky Bi: 30 až 140 mm Poloměry ohybu R: 55 až 150 mm Rozteč: 25 mm na článek = 40 článků / m |
|
Samonosný pojzed |
|

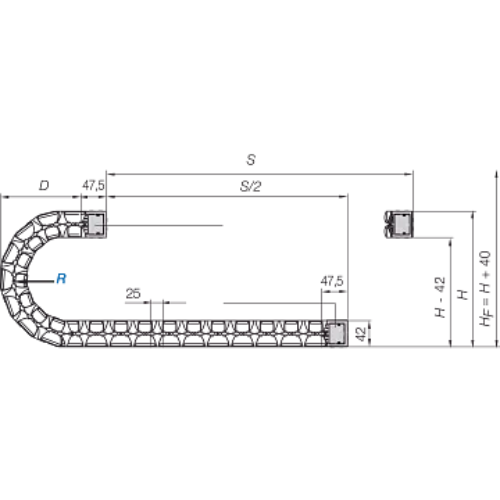

A = pohyblivý konec B = pevný konec Rozteč: 25 mm na článek Počet článků na m: 40 Pojezd: S Délka řetězu = S/2 + K |
Rozměrová řada řetězu E61.35
Obj. číslo | Bi [mm] | Ba [mm] | R [mm] poloměr ohybu |
||||
E61.35.030.R.0 | 30 | 46 | 055 | 075 | 100 | 125 | 150 |
E61.35.040.R.0 |
40 | 56 | 055 |
075 |
100 |
125 |
150 |
E61.35.050.R.0 |
50 | 66 | 055 |
075 |
100 |
125 |
150 |
E61.35.060.R.0 |
60 | 76 | 055 |
075 |
100 |
125 |
150 |
E61.35.070.R.0 |
70 | 86 | 055 |
075 |
100 |
125 |
150 |
E61.35.080.R.0 |
80 | 96 | 055 |
075 |
100 |
125 |
150 |
E61.35.090.R.0 |
90 | 106 | 055 |
075 |
100 |
125 |
150 |
E61.35.100.R.0 |
100 | 116 | 055 |
075 |
100 |
125 |
150 |
E61.35.110.R.0 |
110 | 126 | 055 |
075 |
100 |
125 |
150 |
E61.35.120.R.0 |
120 | 136 | 055 |
075 |
100 |
125 |
150 |
E61.35.140.R.0 |
140 | 156 | 055 |
075 |
100 |
125 |
150 |
R | 055 | 075 | 100 | 125 | 150 |
H | 192 | 232 | 282 | 332 | 382 |
D | 113,5 | 133,5 | 158,5 | 183,5 | 208,5 |
K | 225 | 290 | 365 | 445 | 525 |
