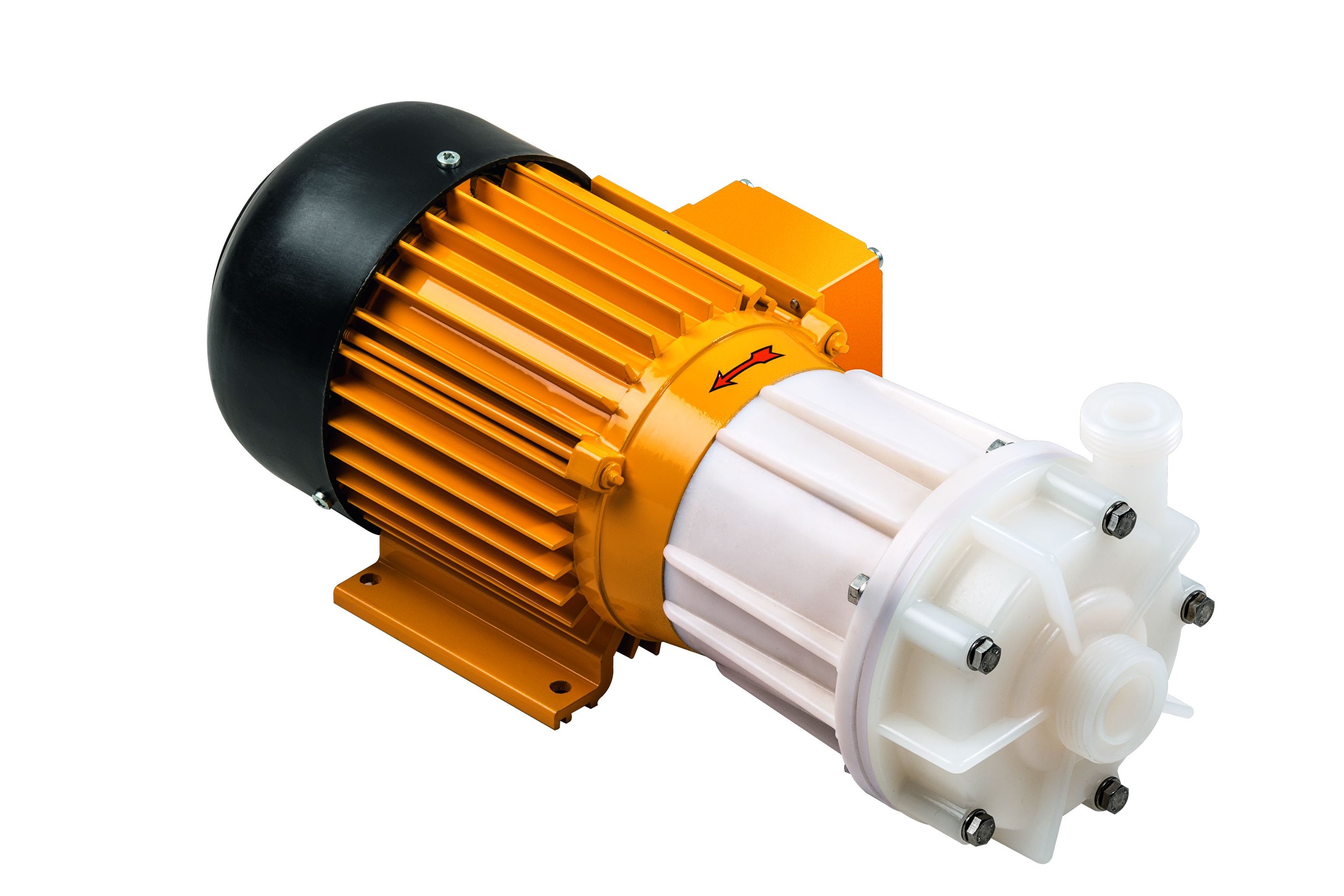

Centrifugal pump SCHMITT MPN series

They are equipped with low-maintenance hydrodynamic plain bearings in PTFE/ceramic or SiC/SiC pairing and a highly efficient permanent magnet. This offers the possibility of diverse and trouble-free applications.

Advantages of the pump

  • Leak-free design - absolutely no leakage, no need to seal rotating parts
  • Material of parts in contact with the medium - PP or PVDF
  • Resistance up to 95 °C
  • Use even in Ex areas
  • Universally applicable

✅ Typical areas of application: chemical, pharmaceutical and food industries

Technical data

Type of suction Normally suction, i.e. liquid inflow
Sucking Axial
Displacement Right side up, swivels 72° if required
Installation Block construction
Drive E-motor for 380 or 220 V, or EX version
Direction of rotation On the pump marked with an arrow
Temperature Max. +95 °C for PVDF, max. +80 °C for PP
Material PVDF or PP
Max. additional quantity 400 l/min
Max. additional height 32 m
Engine power 0,18 - 0,55 kW
