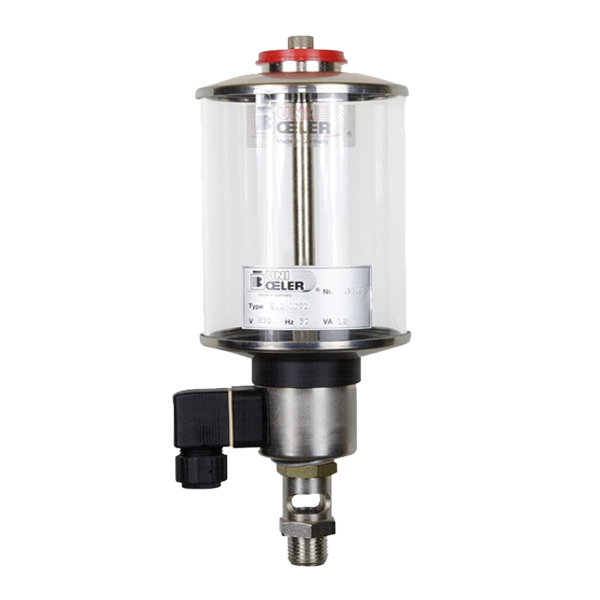

Drip feed lubricator type ELO
For connection to one lubrication point, with electromagnetic shut-off valve
It is possible to manually regulate the frequency of drops dosing or to fully stop the dosing process by regulating mechanism placed above the tank._x000D_
This type of lubricator also contains electromagnetic shut-off valve, which enables to start/stop the oil dropping from the lubricator (connection with working hours of the lubricated device)._x000D_
Technical parameters:
- Reservoir capacity: 36, 140, 200, 500, 1.000, 2.000, 3.000 ml
- El. connection: 230 V AC (24 V AC u ELO 40, IP20 **)
- Max. working temperature: 80 °C *)
- Material: nickel-coated brass, reservoir from glass or plexi-glass, sealing Perbunan (NBR) *)
- Output thread: R 1/8"(a), R 1/2"(a)/R 1/4"(i)
*) The drip feed lubricators with PTFE seals, by which it is possible in combination with glass reservoir to achieve the max. working temperature 200 °C, available on request._x000D_
**) This type of drip feed lubricator is available with electromagnetic shut-off valve type H with IP65 protection cover for wet and dusty surrounding and in special construction form for explosive surrounding (EX-construction form) on request_x000D_
If the automatic autonomous cycling is needed, it is possible to install the timer TUP 1078-1 on the connector of the electromagnetic shut-off valve on request. _x000D_
Generally about drip feed lubricators:
Drip feed lubricators are developed for dosing of oil, or other liquids, to one or more lubrication points._x000D_
Their function is based only on gravitation base that means that they are not able to exert any pressure, and it is necessary to place them above the lubrication point and only in position expressed in the pictures below. _x000D_
All types of drip feed lubricators allows the opportunity of visual check of dosing of the particular drops through check window placed in the lower part of the oiler (by drip feed oilers for more lubrication points – in lower part of particular drippers)._x000D_
Output (outputs) from drip feed lubricator is connected to lubrication point (points) directly, or through short pipes (plastic pipe, screwing, anchor material)._x000D_
If it is necessary to spread the oil on the surface (e. g. by chains lubricating), the place with oil output will be equipped with lubrication brush (see accessories of automatic lubricators).
Product filtering
Number of products found: 27










ELO 2000 G 1/2 Natur, 24 V
