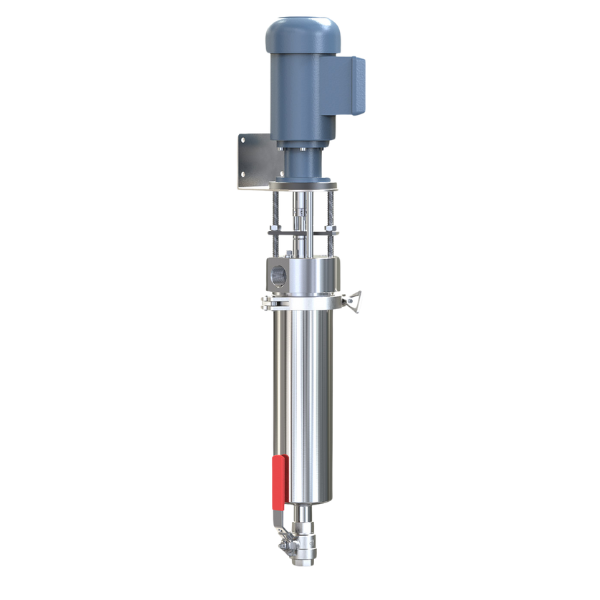

Automatic self-cleaning filter AS50

Automatic self-cleaning filter for viscous media and very demanding applications.

The AS50 automatic filter consists of the following parts

  • filter body and filter head
  • sieve (wedge wire element)
  • wiper blade
  • motor with spur gearbox

The filter media enters the space around the outside of the filter screen through the bottom inlet flange. From there it is pushed inwards through the screen, thus effectively filtering it. The cleaned media then flows into the upper part of the filter and then exits through the upper outlet flange. The solid particles are trapped on the outside of the screen where they are continuously removed by a rotating wiper blade. The trapped sludge falls into the lower part of the filter body where it is discharged at regular intervals through the waste valve.

Automatický samočisticí filtr AS50

Sludge discharge can be achieved in three different ways

  • manually, by opening and closing the ball valve
  • automatically: only by a time-controlled valve, without a control unit
  • automatically: based on DP depending on the pressure difference, i.e. including the control unit

Main functions

  • Environmentally friendly, no disposal of filter elements
  • minimisation of waste quantities
  • easy disassembly
  • filtration even during the washing cycle
  • Applicable to almost all liquids
  • robust construction, resistant to high DP

Application

  • paints, emulsion paints
  • inks
  • adhesives
  • gear oil, rapeseed oil, etc.
  • emulsions
  • electrophoretic coating
  • polyurethane
  • plasticizers
  • solvents
  • tar
  • cooling media

Technical parameters of the AS50 filter

Flow rate 3. 5 m3/h*
Inlet DN R 1"
Outlet DN R l"
Waste DN R 3/4"
Valve R 1/8"
Filter V -Clamp
Total length A 80
Installation distance B 300
Filter diameter  100
Inlet D 27
Outlet E  27
Drain valve F 80
Volume ( l ) 15
Motor 230/400V, 50Hz, consumption (W) 20
Weight kg 12
* applies to water medium, 100 μm sieve
Complies with 2014/68/EU Article 4, Paragraph 3
Filter head stainless  steel 1.4301
Filter inner parts  stainless steel 1.4571
Filter basket stainless steel 1.4404
Filter wiper blade stainless steel 1.4310
Viton PTFE o-ringseal
Filter fineness 25 - 3000 μm
Operating pressure 16 bar
Max. operating temperature 100 °C (with modification also 200 °C)
Drive motor with spur gearbox
Electrical connection requirements  400 V, 50 Hz
Protective enclosure  IP54 or ATEX
