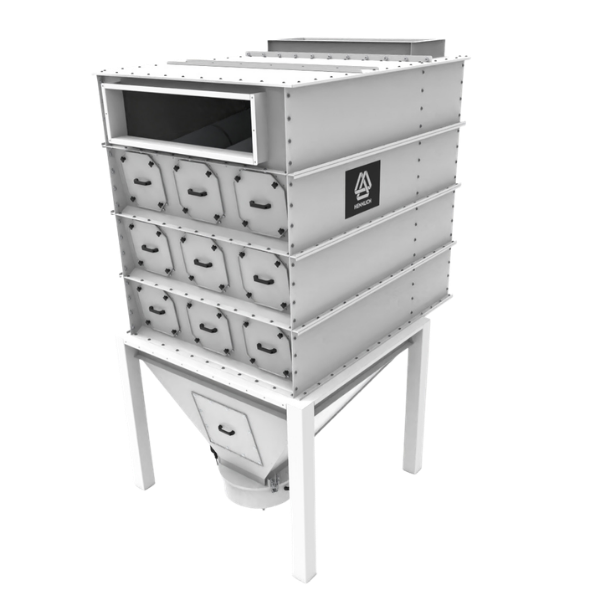

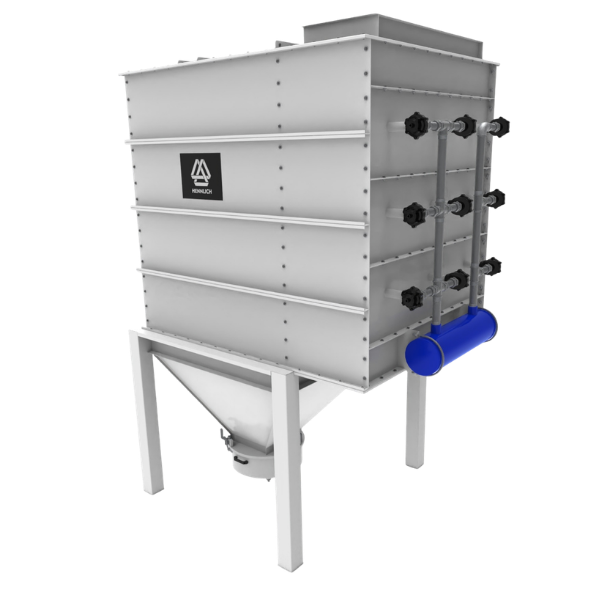

Cartridge filters Smart Jet
Smart Jet cartridge filters are local negative pressure filtration units equipped with automatic regeneration using compressed air.
The filtration media consist of cartridges made of various materials. Depending on noise level requirements, the extraction fan can be installed in an acoustic enclosure.
Dust discharge is handled via dust container, rotary feeder or redirected back onto a conveyor.
Smart Jet dust collectors are also available in versions designed for the extraction of explosive dusts in accordance with the ATEX directive.
Applications:
- welding
- brushing, polishing
- dedusting of conveyor transfer points
- machinery industry
- automotive
- painting shops
Air volume:
- 1 000 - 7 000 m3/h
Product range |
||||
| Type | Air volume (m3/h) |
Filter area (m2) |
Dust outlet |
Power (kW) |
| Smart Jet P0600/9/N | 1 000 | 17,5 | dust container | 1,5 |
| Smart Jet P1200/9/N | 1 800 | 35,6 | dust container | 2,2 |
| Smart Jet P1500/9/N | 2 700 | 44,5 | dust container | 3,0 |
| Smart Jet P1500/9/R | 2 700 | 44,5 | rotary feeder | 5,5 |
| Smart Jet P1500/12/N | 4 000 | 59,0 | dust container | 5,5 |
| Smart Jet P1500/12/R | 4 000 | 59,0 | rotary feeder | 5,5 |
| Smart Jet P1200/16/R | 5 500 | 63,0 | rotary feeder | 7,5 |
| Smart Jet P1200/25/N | 7 000 | 99,0 | dust container | 11,0 |
| Smart Jet P1200/25/R | 7 000 | 99,0 | rotary feeder | 11,0 |
| Smart Jet P1000/15 | 4 000 | 49,4 | back to conveyor | 5,5 |
| Smart Jet P1000/20 | 5 500 | 65,8 | back to conveyor | 7,5 |
