Cyclone separators

Cyclone dust separators Cyklone line are mechanical devices designed for the removal of particulate matter from the air.

Dust particles, driven by centrifugal force, spiral along the inner wall of the cyclone tube and are carried downward by gravity toward the discharge flange. The discharge section is equipped with either a quick-release dust container or a rotary feeder.

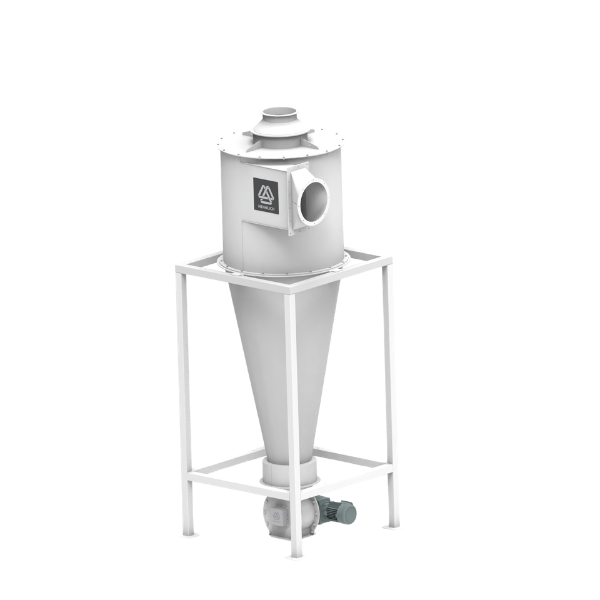

Cyclone separators are supplied complete with accessories, including an expansion chamber, dust container, rotary feeder and support structure.

We manufacture cyclone separators in both carbon steel and stainless steel versions.



Applications:

  • wide range of industries


Air flow:

  • 1 000 - 50 000 m3/h

Product range

Type Separation capacity
(m3/h)
Wall thickness
(mm)
Cyklone 150 1 000 2
Cyklone 300 5 000 3
Cyklone 450 10 000 3
Cyklone 500 15 000 3
Cyklone 600 20 000 3
Cyklone 700 25 000 4
Cyklone 750 30 000 4
Cyklone 800 35 000 4
Cyklone 850 40 000 4
Cyklone 900 45 000 5
Cyklone 950 50 000 5

*
