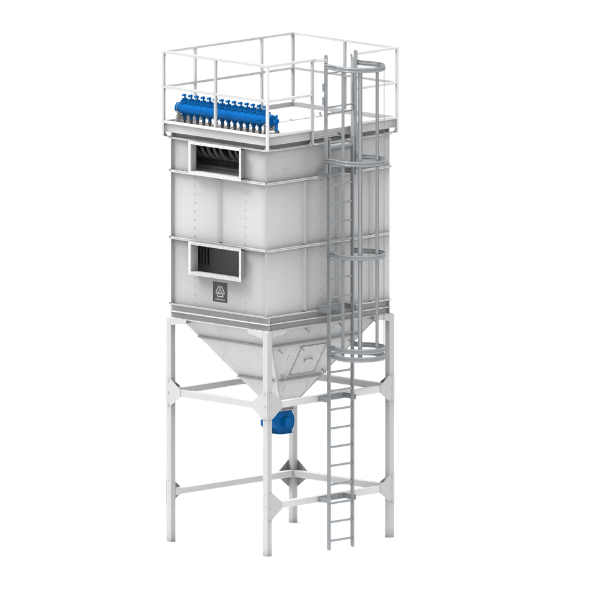

Bag collector Master Wood Jet

Master Wood Jet baghouse collectors are equipped with automatic regeneration using compressed air and flat filter bags made from nonwoven fabric, offering a long service life of over 20,000 operating hours.



Master Wood Jet filters are specifically developed for the wood processing industry.

Depending on noise level requirements, the extraction fan can be installed in an acoustic box. Dust is discharged via a rotary valve into a dust container.

For safe and accessible maintenance, larger filtration units are equipped with walkable platforms, ladders, and safety railings.

Master Wood Jet filtration units are also available in versions designed for the extraction of explosive dusts in accordance with the ATEX directive.



Applications:

  • wood processing
  • paper industry
  • fibrous materials



Air volume:

  • 5 000 - 200 000 m3/h





Product range

Type Air
volume
(m3/h)
Filter
area (m2)
Master Jet 1-16/4/64/200-H 5 000 98
Master Jet 1-32/4/128/200-H 10 000 184
Master Jet 1-32/5/160/200-H 15 000 230
Master Jet 1-32/6/192/200-H 20 000 277
Master Jet 2-32/5/320/200-H 25 000 415
Master Jet 2-32/6/384/200-H 30 000 484
Master Jet 2-32/6/448/200-H 40 000 645
Master Jet 3-32/7/672/200-H 50 000 726
Master Jet 5-32/7/1120/200-H 100 000 1 613
Master Jet 8-32/7/1792/200-H 200 000 2 581
