Série E4Q.58/H4Q.58

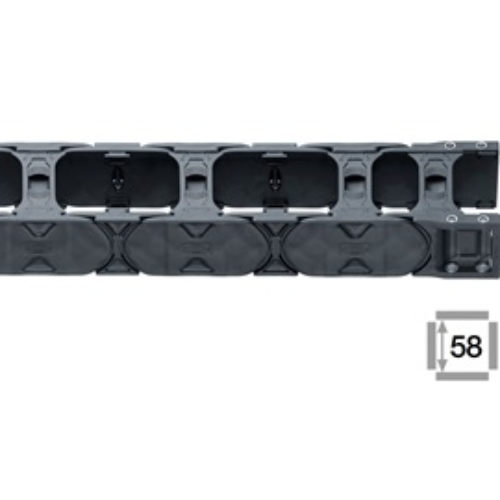

energetický řetěz série E4Q.58_H4Q.58
POPTAT / ODESLAT DOTAZ
Ke stažení

Energetické řetězy e-chain®
série E4Q.58/H4Q.58

  • O 40 % rychlejší plnění: přepážka pro otevírání a zavírání bez použití nářadí
  • Dělicí příčky (separátory): pevně připojené k energetickému řetězu
  • O 10 % nižší hmotnost: prohlubně v materiálu pro optimalizaci hmotnosti a pevnosti
  • Větší pevnost: vertikálně a horizontálně umístěné zarážky pro lepší stabilitu
  • O 17 dB nižší hlučnost: volitelné odhlučnění lze kdykoli dodatečně namontovat

Certifikáty a normy: RoHS 2 2011_65_EU REACH

série E4Q.58_H4Q.58 Vnitřní šířky Bi: 100 až 500 mm
Poloměry ohybu R: 135 až 500 mm
Rozteč: 91 mm na článek = 11 článků / m
E4Q.58_H4Q.58 diagram

Samonosné pojezdy
Samonosné pojezdy versus hmotnost
Osa X: Samonosné pojezdy v m Osa FLB/FLG
Osa Y: Hmotnost náplně v kg/m
Dolní stupnice: Pojezd S v m
FLB = Samonosný s povoleným průvěsem
FLG = Samonosný s přímou horní větví

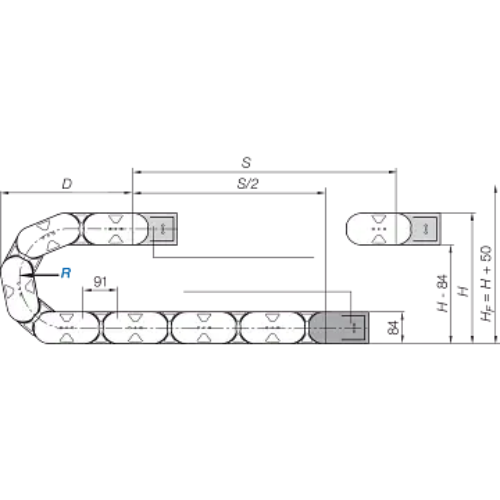

série E4Q.58_H4Q.58 výkres A = pohyblivý konec
B = pevný konec
Rozteč: 91 mm
Řetězový článek na m: 11
Pojezd: S
Délka řetězu: LK= S/2 + K_x000D_
R 135 150 175 200 240 250 300 350 400 450 500
H 354 384 434 484 564 584 684 784 884 984 1084
D 314 329 354 379 419 429 479 529 579 629 679
K 610 655 735 815 940 970 1125 1285 1440 1600 1755
Kdy použít: Kdy zvolit jiný:
  • Když je vyžadován robustní řetěz e-chain® s vnitřní výškou 58 mm
  • Pokud potřebujete řetěz e-chain®, který lze snadno a bez nářadí nainstalovat
  • Pokud chcete inovativní, bionický design
  • Pro samonosné délky až do 5,0 m a plnicí hmotnosti až do 65 kg/m
  • Pro pojezdy do 100 m
  • Vhodné také pro boční, stojící a závěsné aplikace
  • Pokud je vyžadována plně uzavřená trubka e-tube s podobnou pevností a velikostí
    » série R4.56
  • Kdy musí řetěz e-chain® splňovat normu ISO třídy 1 pro čisté prostory
    » série E61.62
  • Pokud je požadován lehký, cenově výhodný řetěz e-chain®/e-tube s vyšší dynamikou
    » série E4.64L
  • Pokud je třeba realizovat pojezdy mezi 100 m a 400 m
    » série E4Q.58
  • Pokud je třeba položit velmi tenké nebo hydraulické kabely
    » série E4Q.58
