Série E4Q.82/H4Q.82

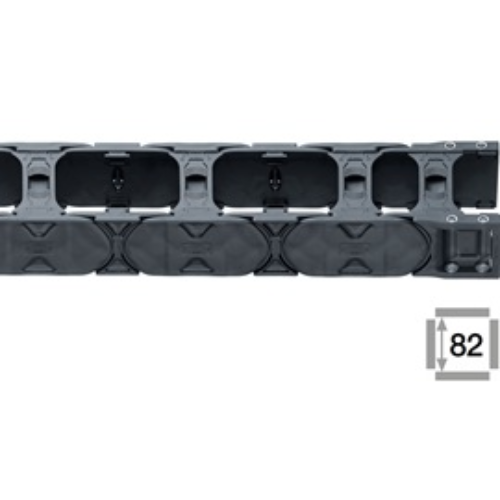

energetický řetěz série E4Q.82_H4Q.82
POPTAT / ODESLAT DOTAZ
Ke stažení

Energetické řetězy e-chain®
série E4Q.82/H4Q.82

  • O 40 % rychlejší plnění: přepážka pro otevírání a zavírání bez použití nářadí
  • Dělicí příčky (separátory): pevně připojené k energetickému řetězu
  • O 10 % nižší hmotnost: prohlubně v materiálu pro optimalizaci hmotnosti a pevnosti
  • Větší pevnost: vertikálně a horizontálně umístěné zarážky pro lepší stabilitu
  • O 17 dB nižší hlučnost: volitelné odhlučnění lze kdykoli dodatečně namontovat

Certifikáty a normy: RoHS 2 2011_65_EU REACH

série E4Q.82_H4Q.82 Vnitřní šířky Bi: 100 až 500 mm
Poloměry ohybu R: 150 až 500 mm
Rozteč: 111 mm na článek = 11 článků / m
série E4Q.82_H4Q.82 diagram

Samonosné pojezdy
Samonosné pojezdy versus hmotnost
Osa X: Samonosné pojezdy v m Osa FLB/FLG
Osa Y: Hmotnost náplně v kg/m
Dolní stupnice: Pojezd S v m
FLB = Samonosný s povoleným průvěsem
FLG = Samonosný s přímou horní větví

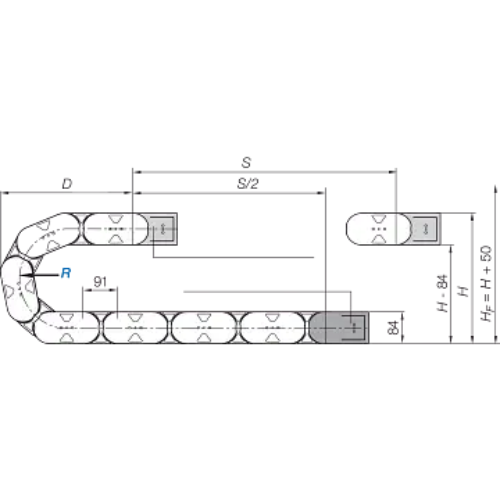

série E4Q.82_H4Q.82 výkres A = pohyblivý konec
B = pevný konec
Rozteč: 91 mm
Řetězový článek na m: 11
Pojezd: S
Délka řetězu: LK= S/2 + K_x000D_
R 150 175 200 250 300 350 400 450 500 600 1000
H 408 458 508 608 708 808 908 1008 1108 1308 2108
D 371 396 421 471 521 571 621 671 721 821 1221
K 695 775 855 1010 1165 1325 1480 1640 1795 2110 3365
Kdy použít: Kdy zvolit jiný:
  • Když je vyžadován robustní řetěz e-chain® s vnitřní výškou 58 mm
  • Pokud potřebujete řetěz e-chain®, který lze snadno a bez nářadí nainstalovat
  • Pokud chcete inovativní, bionický design
  • Pro samonosné pojezdy až do 5,0 m a plnicí hmotnosti až do 65 kg/m
  • Pro pojezdy do 100 m
  • Vhodné také pro boční, stojící a závěsné aplikace
  • Pokud je vyžadována plně uzavřená trubka e-tube s podobnou pevností a velikostí
    » série R4.56
  • Kdy musí řetěz e-chain® splňovat normu ISO třídy 1 pro čisté prostory
    » série E61.62
  • Pokud je požadován lehký, cenově výhodný řetěz e-chain®/e-tube s vyšší dynamikou
    » série E4.64L
  • Pokud je třeba realizovat pojezdy mezi 100 m a 400 m
    » série E4Q.58
  • Pokud je třeba položit velmi tenké nebo hydraulické kabely
    » série E4Q.58
