Série E4Q.34/H4Q.34

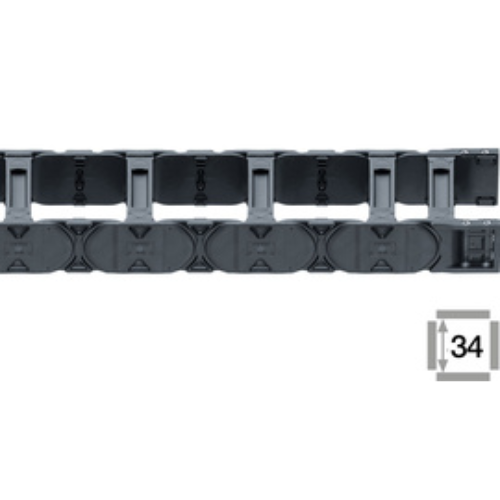

energetický řetěz série E4Q.34_H4Q.34
POPTAT / ODESLAT DOTAZ
Ke stažení

Energetické řetězy e-chain®
série E4Q.34/H4Q.34

  • O 40 % rychlejší plnění: přepážka pro otevírání a zavírání bez použití nářadí
  • Dělicí příčky (separátory): pevně připojené k energetickému řetězu
  • O 10 % nižší hmotnost: prohlubně v materiálu pro optimalizaci hmotnosti a pevnosti
  • Větší pevnost: vertikálně a horizontálně umístěné zarážky pro lepší stabilitu
  • O 17 dB nižší hlučnost: volitelné odhlučnění lze kdykoli dodatečně namontovat

Certifikáty a normy: RoHS 2 2011_65_EU REACH

série E4Q.34_H4Q.34 Vnitřní šířky Bi: 75 až 300 mm
Poloměry ohybu R: 63 až 300 mm
Rozteč: 56 mm
série E4Q.34_H4Q.34 diagram

Samonosné pojezdy
Samonosné pojezdy versus hmotnost
Osa X: Samonosná délka v m Osa FLB/FLG
Osa Y: Hmotnost náplně v kg/m
Dolní stupnice: Pojezd S v m
FLB = Samonosný s povoleným průvěsem
FLG = Samonosný s přímou horní větví

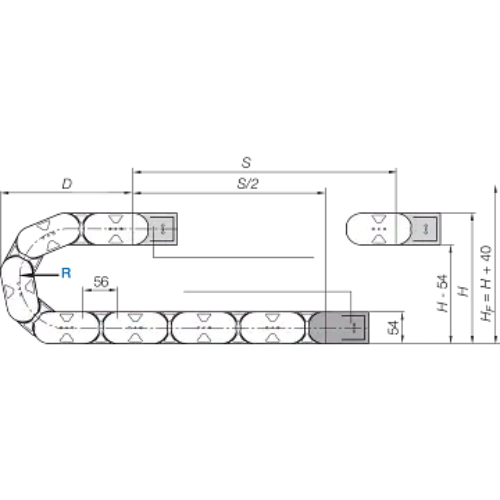

série E4Q.34_H4Q.34 výkres A = Pohyblivý konec
B = Pevný konec
Rozteč: 56 mm
Řetězový článek na m: 18
Pojezd: S
Délka řetězu: LK= S/2 + K_x000D_
R 063 075 100 125 150 175 200 220 250 300
H 180 204 254 304 354 404 454 494 554 654
D 174 186 211 236 261 286 311 331 361 411
K 310 350 430 505 585 665 745 805 900 1055
Kdy použít: Kdy zvolit jiný:
  • Když je vyžadován robustní řetěz e-chain® s vnitřní výškou 34 mm
  • Pokud potřebujete řetěz e-chain®, který lze snadno a bez nářadí nainstalovat
  • Pokud chcete inovativní, bionický design
  • Pro samonosné délky až do 3,5 m a plnicí hmotnosti až do 20 kg/m
  • Pro délky pojezdu do 200 m
  • Vhodné také pro boční, stojící a závěsné aplikace
  • Pokud je požadována plně uzavřená trubka e-tube s podobnou pevností a velikostí
    » série R4.32
  • Když musí řetěz e-chain® splňovat normu ISO třídy 1 pro čisté prostory
    » série E61.29
  • Pokud je požadován lehký, cenově výhodný řetěz e-chain®/e-tube s vyšší dynamikou
    » série E4.38L
